A Rat Look VW Camper – nothing better than a primer paint job then

DragBus Rat Stylee part three – giving it a home-made primer paint job


Keeping the theme of a Rat Style the finish of the paint has to be either original or very close to original – well we were out of original paint on our VW Camper, what with the extreme rust and pitting, plus the numerous panel replacements. So..



What colour to spray from an aerosol? It has to be a matt finish so we chose primer. The best primer that is sealed against water is an epoxy primer. So armed with 14 cans of Spraymax epoxy 2K primer from Germany – this is real 2 pack primer in an aerosol form, to energise it you press the red button on the base and you then have 12 hours or so to use the can – off we set.



First off we scuffed the whole Bus, using a 3M paint stripping wheel – took about 20 hours to strip the necessary parts. We then wire wheeled the really rusty areas and use a neutraliser to convert rust to this black substance that is not going to rust further.

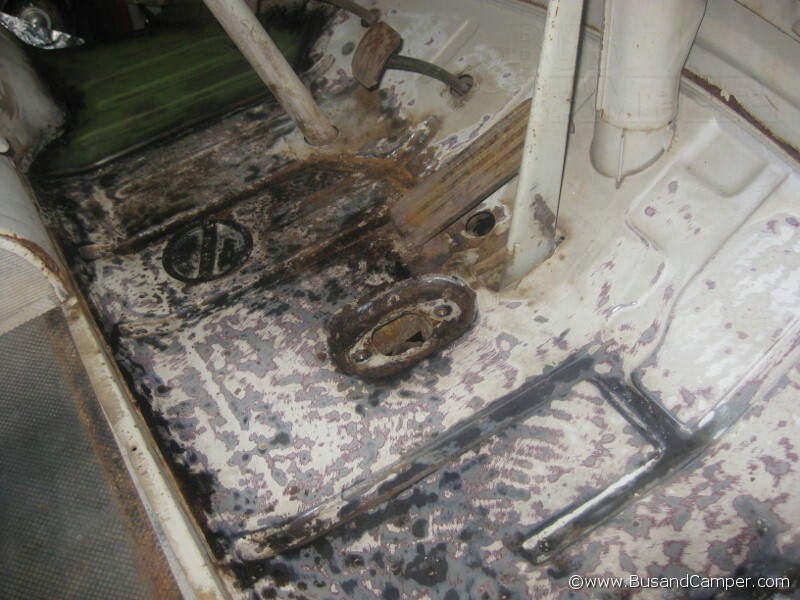

This is front floor half way through the work – here we still have some surface rust;

Camper front floor before paint

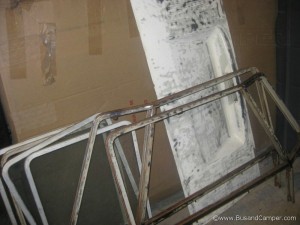

Nothing escaped being taken off the Camper – we took the front doors off, all the glass so we can get paint into the window beds, including the door tops – stripped and bare ready for paint;

Split Camper front door tops bare

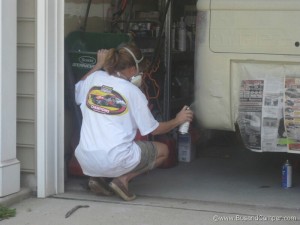

Once the area was cleaned with water and degreaser, we treated the surface rust and then blew off all the dust and particles with lots of compressed air, masked the paint area carefully so as not to overspray anything original, let the area settle and then wiped off with a tack rag several times. Here we are part way through the rattle can aerosol process – note the use of breathing apparatus;

Campervan aerosol paint

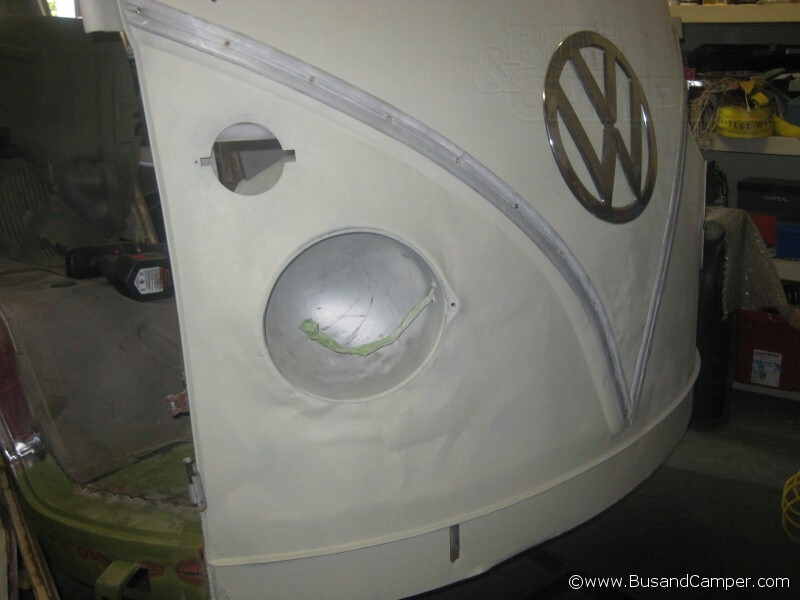

Once all painted – including the roof we then couldn’t wait for the camera before refitting some trim and windows – to see what the finished Bus would look like;

Front nose painted vw camper

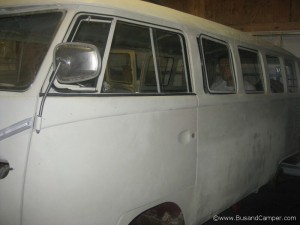

And here are the two sides with door tops and pop outs complete with new seals / rubbers etc;

Bus epoxy primer front door and long panel



And the passenger side;

Camper in primer cargo doors and pop outs



While the Bus was being painted we stripped off the front beam and gearbox running gear for a coat of underseal – courtesy of Waxoyl;

vw camper undersealed front floor

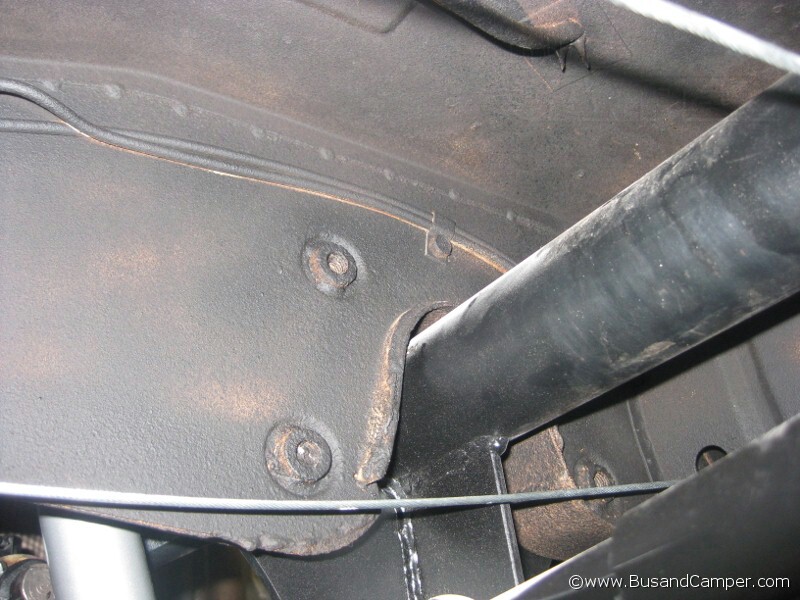

A sneaky picture showing the new narrowed beam in place around the Waxoyled chassis beams;

Waxoyl underseal vw camper
